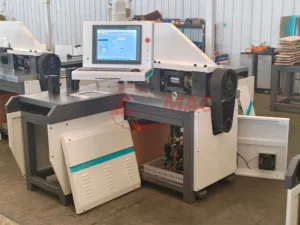

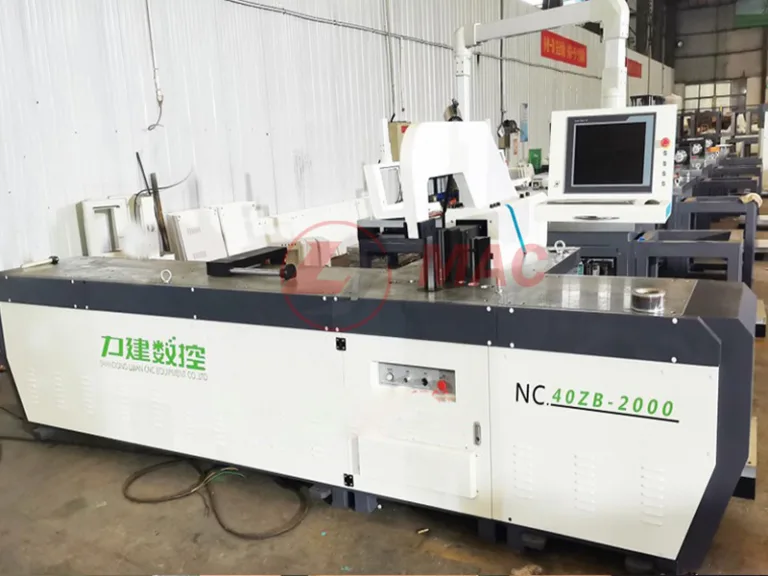

NC.40ZB-2000 busbar bending machine

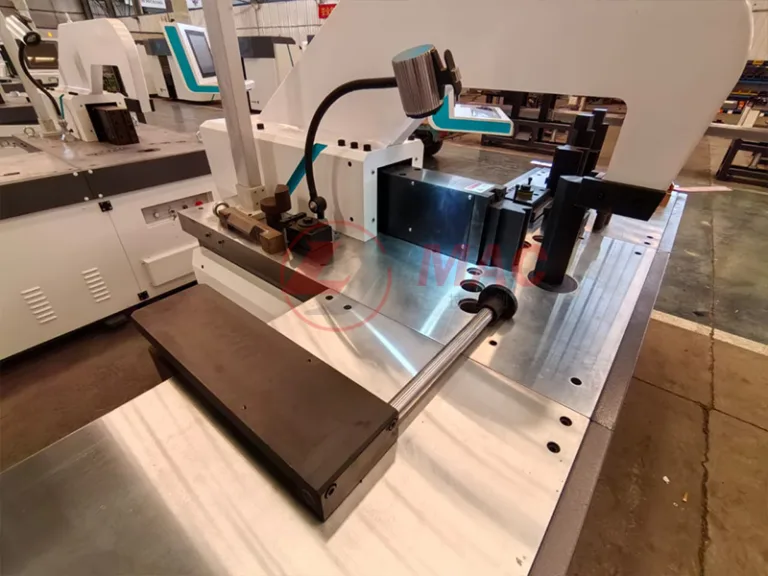

Unlike the NC.40ZB-1200, the NC.40ZB-2000 busbar bending machine is a custom-built model with superior busbar processing capabilities, capable of processing copper busbars up to 15mm thickness x 200mm width, with a maximum stopper stroke of 2000mm..

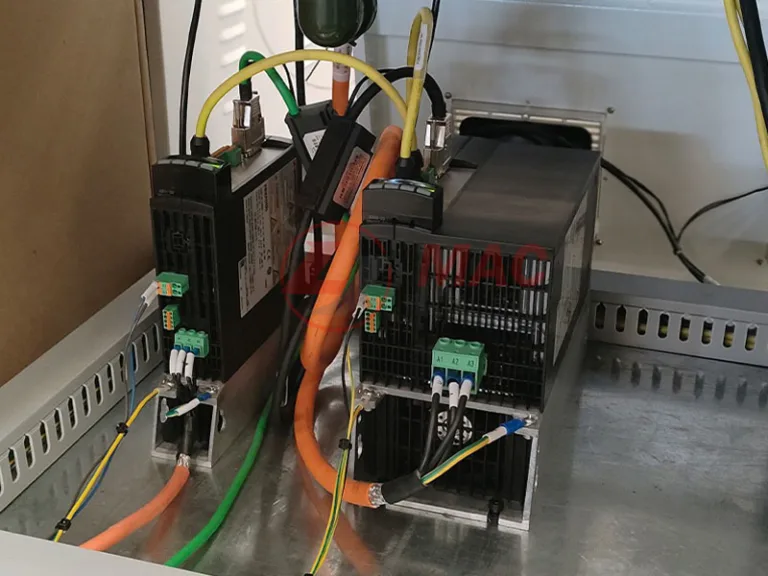

Note: Unlike hydraulically driven busbar bender, our busbar bending machine utilize servo motors to provide the bending force (Max 400KN), which is 60% more energy-efficient than hydraulic systems and offers higher precision. This system is designed for high-load, high-precision bending.

The NC.40ZB-2000 is programmed and operated via a modern, easy-to-use, 2-axis control touchscreen. Bending angles can be programmed and adjusted after the initial bend. The stroke setting can be adjusted in the program at any time in +/- 0.1° increments to offset material-related variances.  The machine can share data with CNC busbar punching and cutting machine via Wi-Fi, creating an automated busbar punching, cutting, and bending production line.

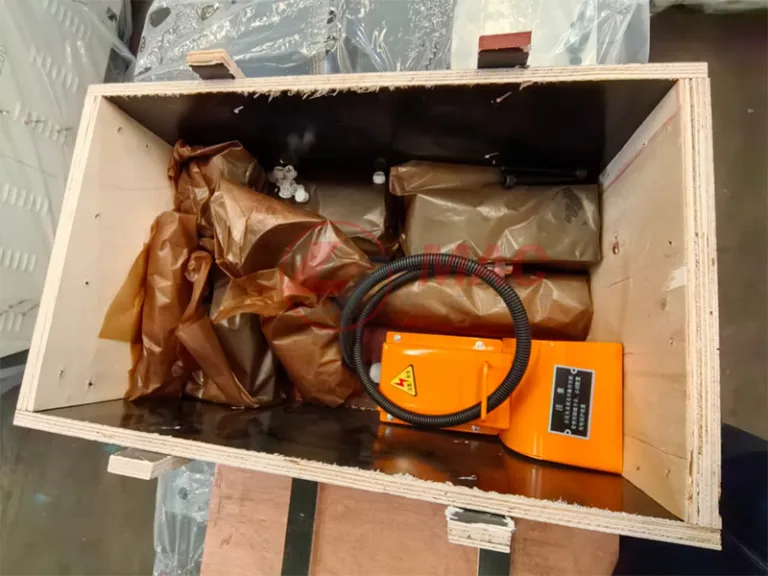

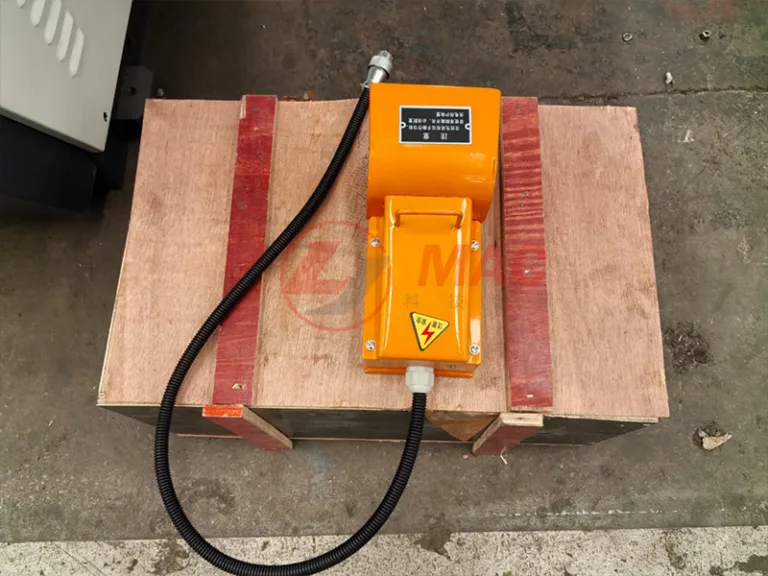

The NC.40ZB-2000 busbar bender’s slow, automatic, and straightening modes can all be operated via a foot switch or manual control line. Optional automatic measurement and rebend functions ensure perfect bends regardless of material properties. For each bend, the NC.40ZB-2000 copper busbar bender performs an initial bend, measures, and then rebends each busbar, ensuring maximum process reliability and precision. The control system individually calculates the required stroke and springback compensation for optimal accuracy.

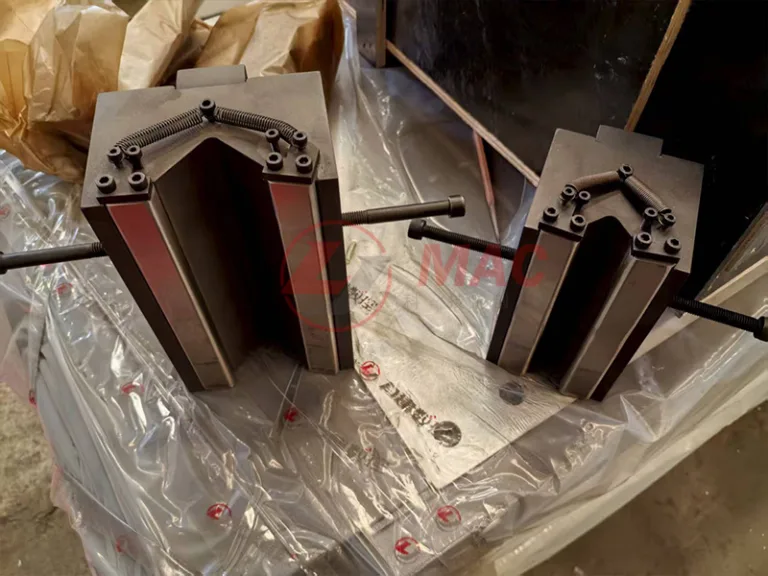

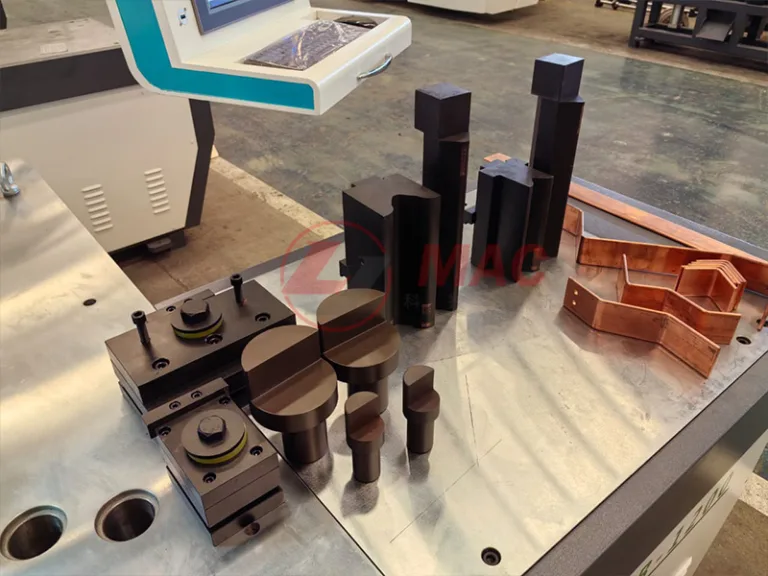

Note: The molds mentioned above are standard configurations. If you need molds with different specifications or for special busbar shapes, our technical team can customize them free of charge. To contact our technical engineer, please email lisa@busbarmac.com.
