SS-50-3CNC PRO CNC Busbar Processing Machine
function
Basic parameters
description

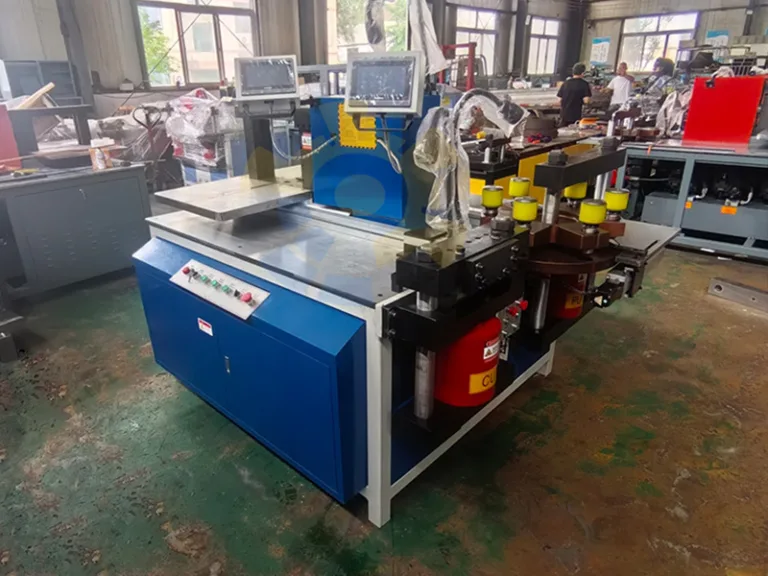

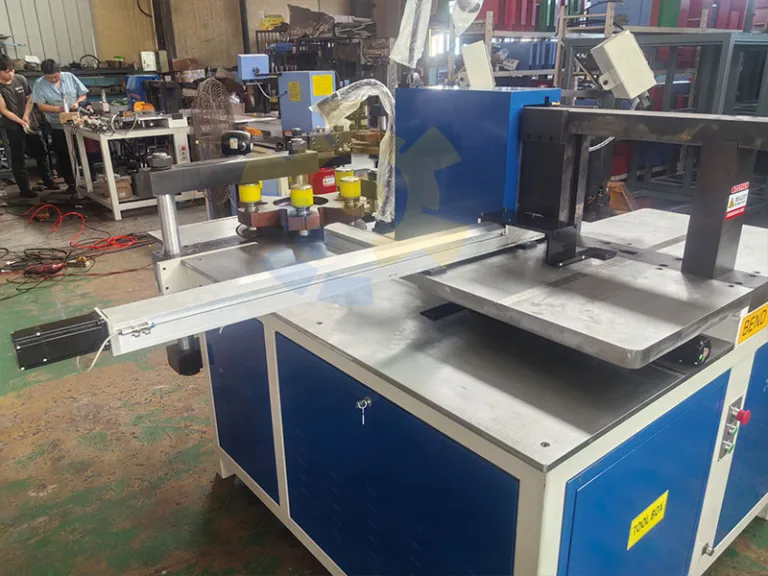

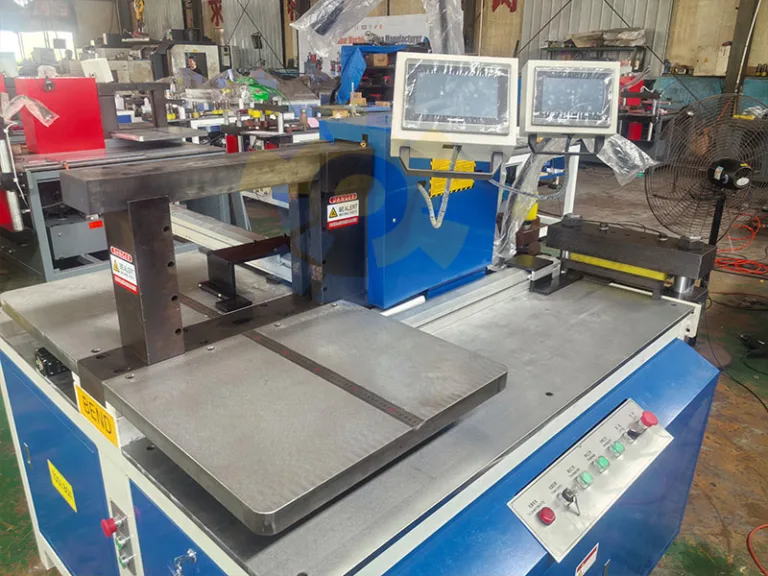

The SS-50-3CNC PRO CNC busbar processing machine can process copper busbars up to 16mm thick x 250mm wide. It utilizes a 5.5kW motor and four 400W servo motors, delivering 500kN of efficiency and incredible precision.
Unlike standard 3-in-1 busbar machine, the SS-50-3CNC PRO far surpasses the SS-50-3CNC copper busbar machine in busbar processing efficiency. Four independent servo motors drive high-precision roller screws, automatically positioning the machine based on operator-entered processing coordinates. This automates busbar punching, cutting, and bending operations, eliminating the need for operators to measure and locate busbar processing coordinates with a ruler, significantly improving processing efficiency.

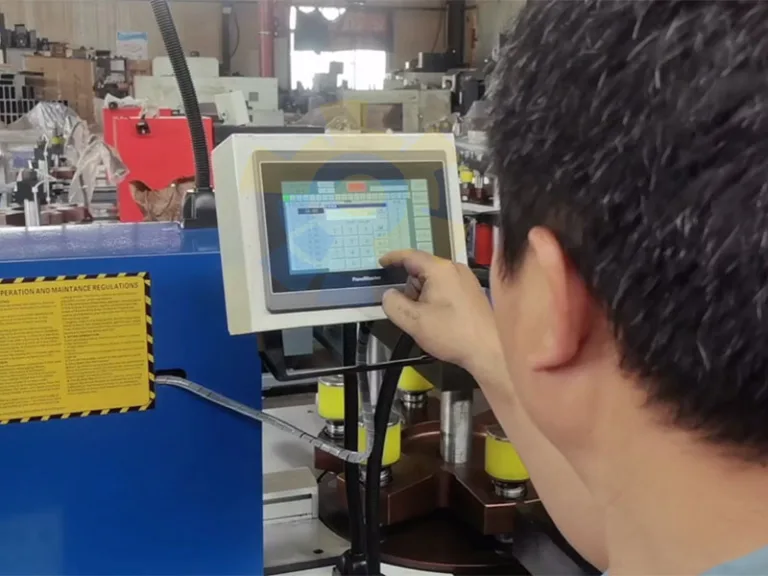

SUNSHINE™’s PRO series busbar processing machines also feature a memory function, eliminating the need for operators to repeatedly enter drawing parameters, significantly improving efficiency and reducing operational errors.
Product Video
parameters
| Model | SS-50-3CNC PRO |
| Max. Thickness | 16mm |
| Max. Width | 250mm |
| Pressure | 500KN |

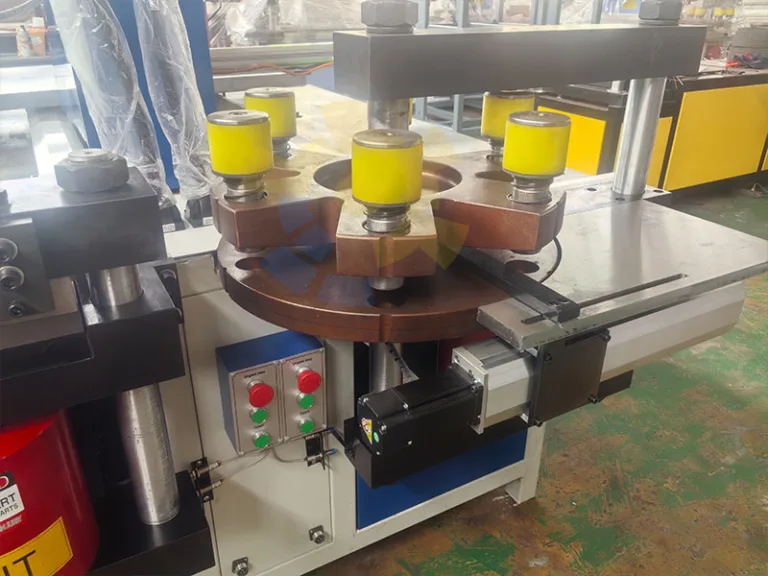

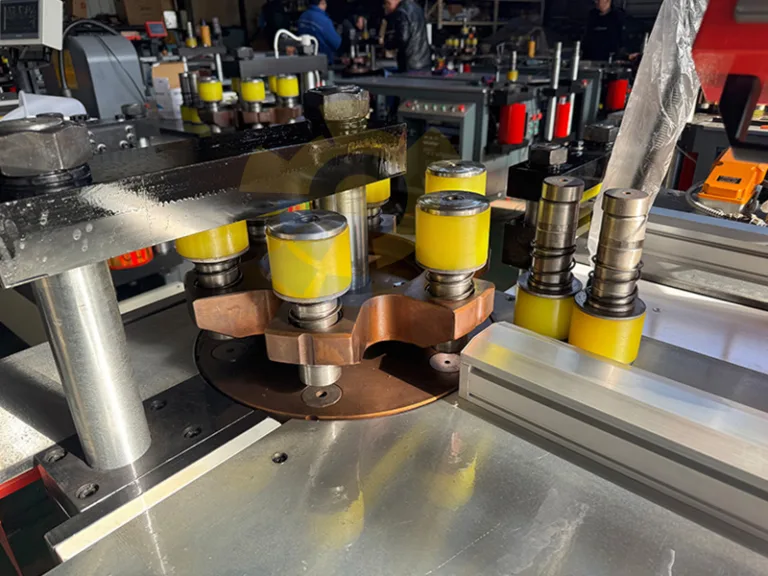

| Punching Station | 6 |
| Punching Range | Φ4.3－Φ30 |
| Punching Error | ±0.1.5mm/m |
| Punching Length Stroke Limit | 1000mm |
| Punching Width Stroke Limit | 150mm |
| Bending Error | ±0.3º |
| Bending Length Stroke Limit | 1000mm |
| Cutting Length Stroke Limit | 1000mm |
| Motor Power | 5.5KW*3 |
| Servo Motor Power | 400W*4 |
| Voltage | 380V 50HZ(default) |

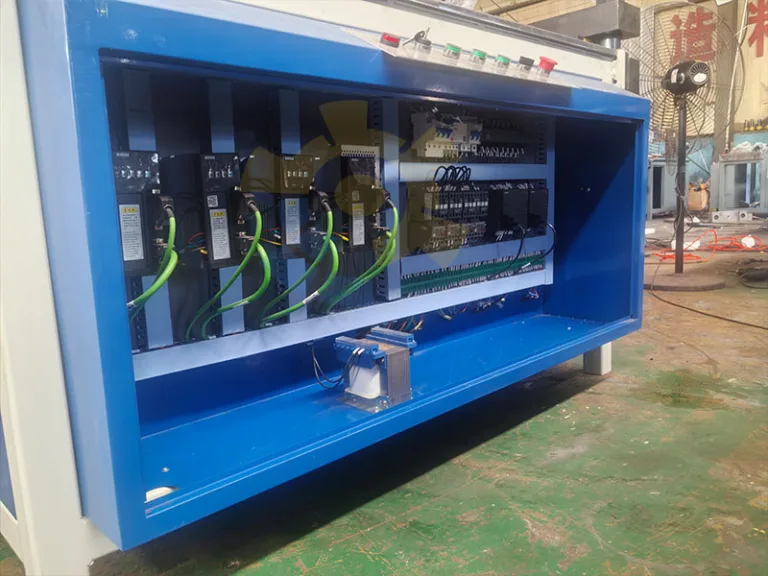

| PLC | Siemens for Bending+Punching+Cutting |
| HIM Mobile Panel | 3sets |
| Language | Chinese/English |

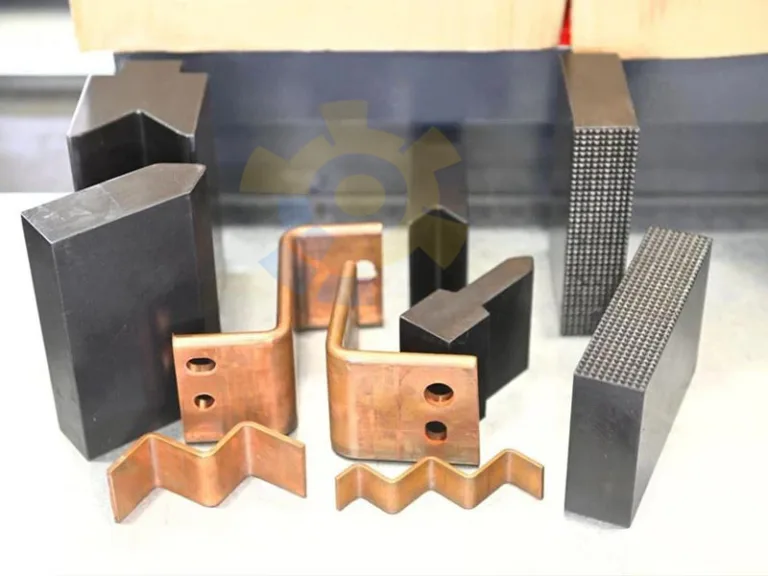

Mold List

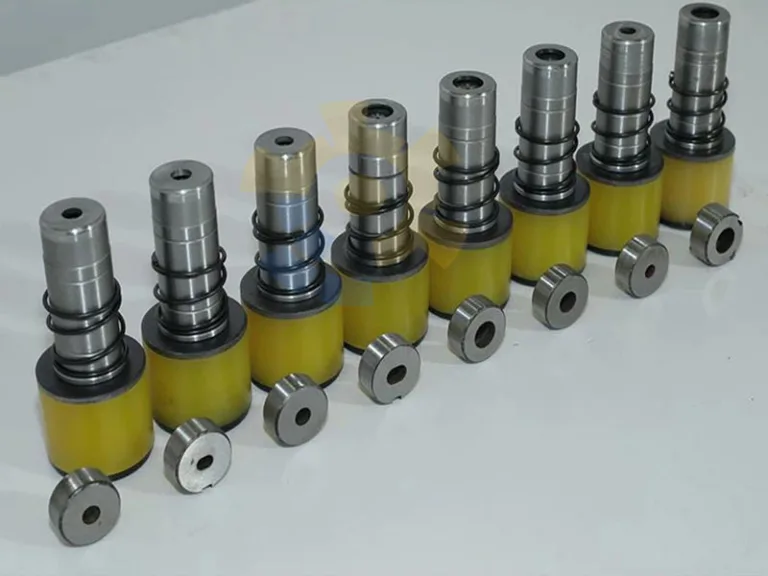

| Round Punching Mold | Ø7, Ø9, Ø11, Ø13, Ø17 | 5sets |
| Oval Punching Mold | Ø11×15, Ø13×18, Ø17×21 | 3sets |

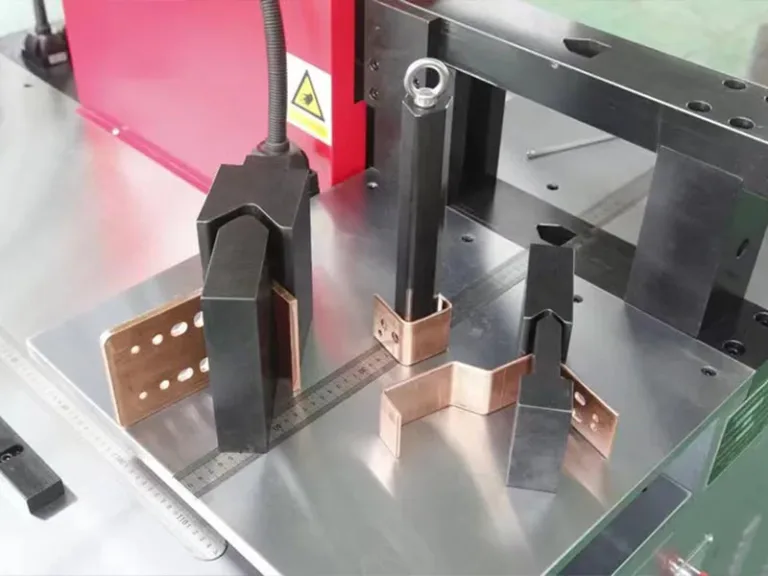

| Vertical Bending Mold | R3, R5, R10 | 3sets |
| U-SHAPE Mold | / | 1set |
| Horizontal Bending Mmold | R80 or R50 | 1set |
| Embossing Mold | 250mm | 1set |

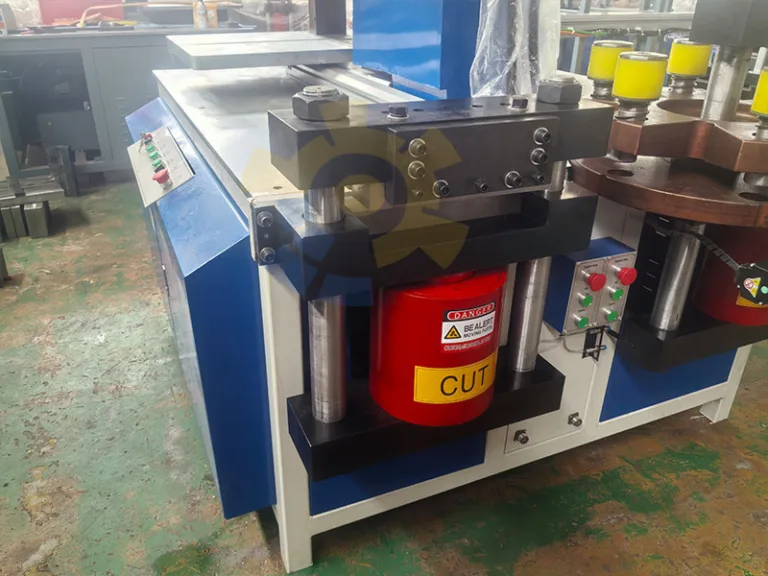

| Cutting Mold | / | 1set |
Note: The molds mentioned above are standard configurations. If you need molds with different specifications or for special busbar shapes, our technical team can customize them free of charge. To contact our technical engineer, please email lisa@busbarmac.com.
